Heavy Duty Truck Turntables
In congested urban logistics, traditional truck maneuvering is inefficient and high-risk. Weizhong’s Heavy Duty Truck Turntables allow semi-trailers and logistics vehicles to rotate 360° in place, drastically reducing loading dock cycle times and eliminating complex reversing maneuvers.
80ft Industrial Turntable: Wildflower Studios, New York
Unmatched Efficiency: Large-scale solutions, such as the Wildflower Studios project (pictured above), eliminate complex maneuvers. Our technology at the Barclays Center similarly allows trucks to rotate 360° to align perfectly with loading bays.
Superior Safety: Precision-controlled movement minimizes collision risks in tight urban confined spaces. Ideal for high-traffic logistics hubs in major global cities.
| Diameter | Load Capacity | Rotation Speed | Motor Power | Height |
|---|---|---|---|---|
| 8 meter | 30 metric tons | 1.0 RPM | 4 kW | 500 mm |
| 9-10 meter | 30 metric tons | 0.8 RPM | 4 kW | 500 mm |
| 11 meter | 30 metric tons | 0.7 RPM | 4 kW | 500 mm |
| 12-12.5 meter | 30 metric tons | 0.6 RPM | 4 kW | 500 mm |
| 15-18 meter | 45 metric tons | 0.5 RPM | 7.5 kW | 500 mm |
| 24 meter (80ft) | 60-100 metric tons | 0.25 RPM | 7.5-15 kW | 500mm |
Our Pin-Gear system is specifically engineered for extreme heavy-duty use. Unlike friction drives that fail under 100-ton loads or in rainy conditions, Pin-Gear provides a mechanical lock for reliable, high-torque rotation.

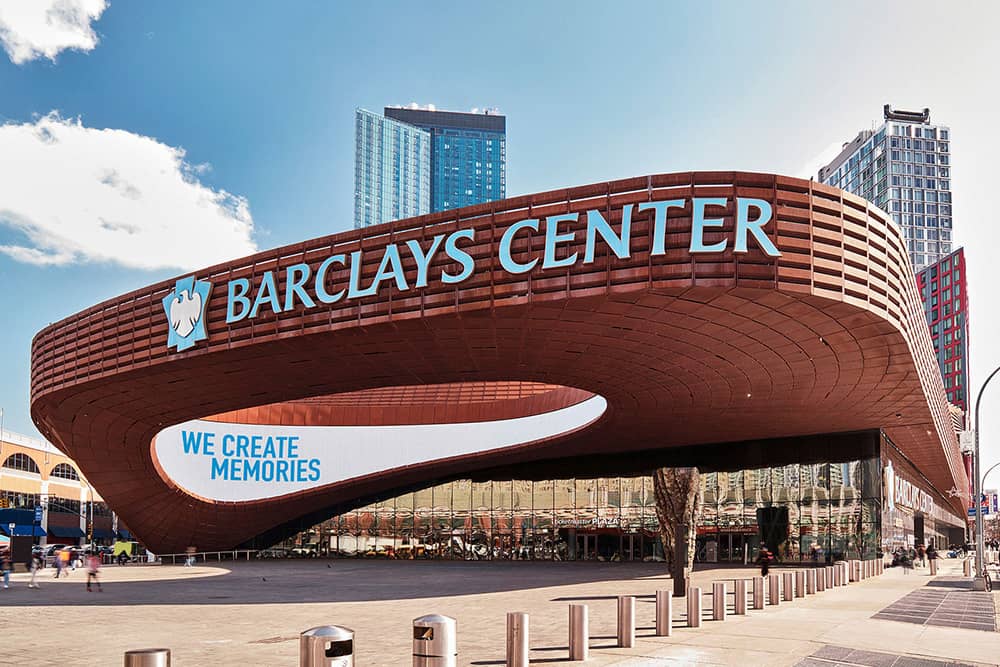

Barclays Center, NYC

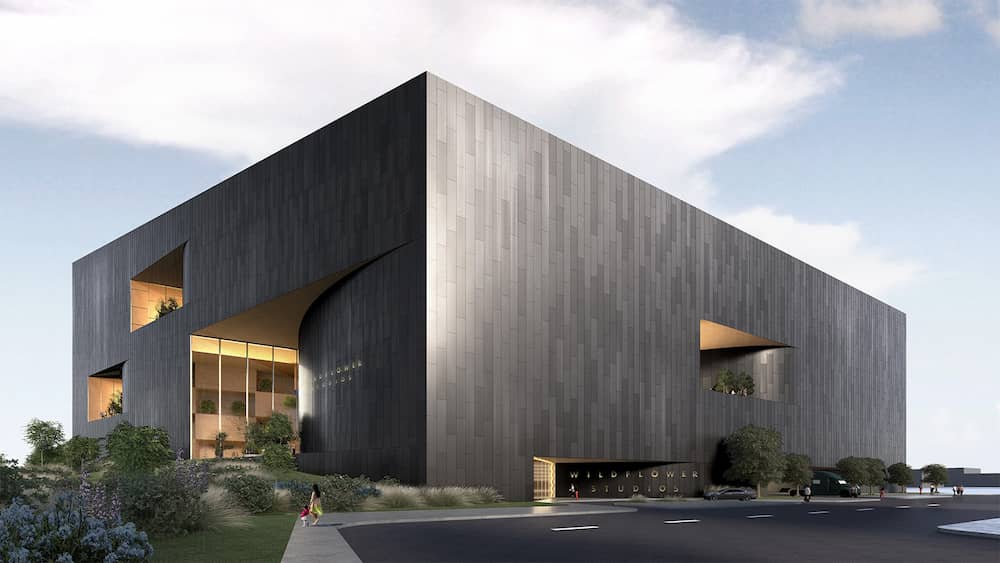

Wildflower Studios, NYC

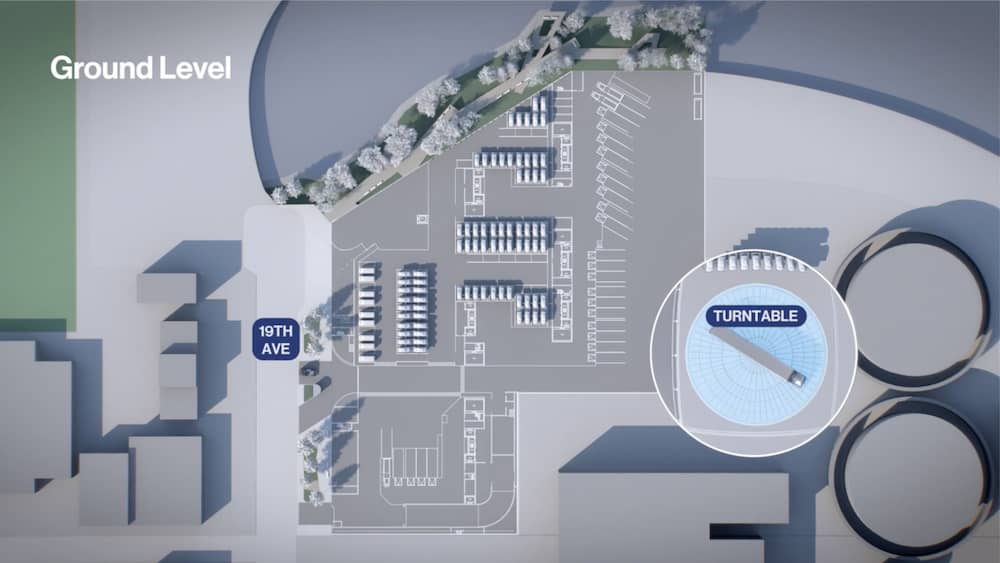

Logistics Layout Plan
Q: What is the maximum weight capacity for Weizhong truck turntables?
A: Weizhong can custom-engineer turntables to support loads from 30 to over 100 metric tons. This covers everything from standard delivery trucks to full-sized semi-trailers.
Q: Does the turntable work effectively in outdoor or rainy environments?
A: Yes. Our patented Pin-Gear drive uses positive mechanical engagement, ensuring zero-slip operation even in rain, snow, or oil-slicked environments.
Q: What is the expected service life of the Pin-Gear mechanism?
A: Designed for 24/7 high-traffic hubs, Weizhong Pin-Gear systems are built for a service life of 20-30 years with minimal maintenance.
