Truck Logistics Turntables
In high-volume distribution centers and narrow urban industrial sites, space limitations dictate operational cost. Shenyang Weizhong has engineered industrial revolving machinery since 1991, developing high-capacity truck turntables that maximize freight turnaround. Designed to manage the world's heaviest commercial vehicles, our zero-slip platforms execute 360-degree on-the-spot rotation, converting cramped, high-risk loading zones into streamlined forward-facing transit terminals.
Repetitive blind manual reversing and multi-point U-turns trigger heavy freight backups. Our platforms rotate vehicles automatically, ensuring trucks enter and exit sorting docks in a continuous forward-facing direction.
Allocating expansive industrial site footprints for tractor-trailer turning radiuses compromises warehouse square footage. Integrating a Weizhong platform unlocks denser building layouts and expanded material storage zones.
Backing multi-axle semi-trucks into enclosed or high-traffic cargo zones introduces acute property liabilities. Swiveling vehicles on a flat, automated deck minimizes site collisions and structural hangar damages.
| Diameter | Load Capacity | Rotation Speed | Motor Power | Height |
|---|---|---|---|---|
| 8 meter | 30 metric tons | 1.0 RPM | 4 kW | 500 mm |
| 9-10 meter | 30 metric tons | 0.8 RPM | 4 kW | 500 mm |
| 11 meter | 30 metric tons | 0.7 RPM | 4 kW | 500 mm |
| 12-12.5 meter | 30 metric tons | 0.6 RPM | 4 kW | 500 mm |
| 15-18 meter | 45 metric tons | 0.5 RPM | 7.5 kW | 500 mm |
| 24 meter (80ft) | 60-100 metric tons | 0.25 RPM | 7.5-15 kW | 500mm |
From urban commercial delivery boxes to deep-pit mining transport haulers, our structural configurations bridge dynamic weight matrices scaling from 30 up to 1,000 metric tons.
We draw up bespoke structural spans ranging from 9-meter profiles for local rigid bodies to over 24-meter layouts custom-tailored for multi-axle interstate semi-trailers.
Driven via our rolling-contact Pin-Gear transmission topology, ensuring steady torque distribution and zero track slippage under severe offset concentrated masses.
Heavy hot-dip galvanized coating lines provide resilient defense margins against road salts, chemical sub-floor leakage, and deep sub-zero winter freeze states.
Operators command exact directional headings down to micro-indexing levels using standard automated touch-screen human-machine interfaces (HMI).
Closed-loop absolute digital encoders coupled with synchronous VFD motors align vehicle corridors flawlessly to terminal gangways every time.

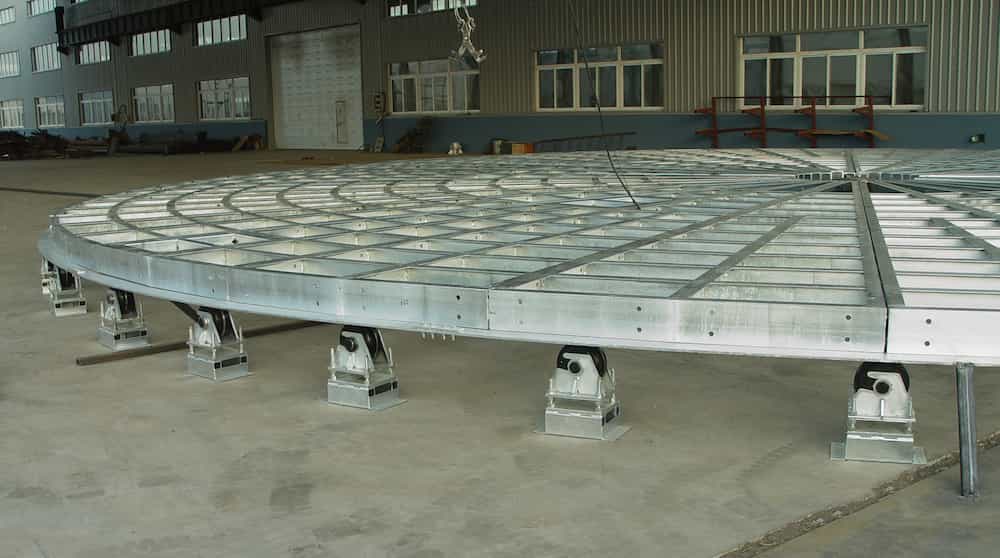

Inherits Weizhong’s foundational heavy-duty industrial bearing track architecture, designed to withstand continuous repetitive structural axle impact loads.
Easily configure custom sequential speed loops, specific angular indexing profiles, and safety sensor dwell parameters matching automated hub traffic management rules.
B2B cargo hubs scale differently. Our engineering department isolates layout data, fleet dynamic turning limits, and facility structural boundaries to draw up custom mechanical configurations from baseline physics calculations.
We map maximum axle concentrations, total vehicle lengths (e.g., WB-67 configurations), and gross mass values to calculate exact structural deck spans and steel framework margins.
Bespoke pit structural layout blueprints, custom low-profile frames, and localized deck surface options (checkered diamond steel or concrete casting frames) integrate clean with warehouse logistics surfaces.
Industrial fieldbus protocols link electrical control cabinets seamlessly over standard network layers (Profinet, TCP/IP), connecting rotating actions to master automated yard management engines.
Barclays Center, NYC — In-Building Cargo Loading Cell
Wildflower Studios, NYC — Low-Clearance Urban Logistics Hub
Engineering CAD Layout Plan — Structural Shaft Integration Blueprint
Consult with our structural machinery engineers for customized industrial truck turntable prices, CAD block configurations, and spatial layout drawings.
Q1: What is the maximum weight capacity for Weizhong truck turntables?
A: Weizhong custom-engineers high-capacity vehicle platforms to support extreme dynamic loading structures scaling from 30 metric tons up to 1,000 metric tons. Our structural load beds safely accommodate everything from single-unit commercial delivery box vehicles to heavy multi-axle interstate semi-trailers.
Q2: Does the turntable work effectively in outdoor or rainy environments?
A: Yes. All our mechanical steel units undergo complete hot-dip galvanization to stop oxidation. Unlike standard friction-drive wheels that suffer wheel slippage under moisture, our patented Pin-Gear drive employs a positive mechanical rolling mesh, guaranteeing zero-slip torque transmission in extreme rain, snow, or oil-slicked facility yards.
Q3: What is the expected service life of the Pin-Gear mechanism?
A: Engineered explicitly for high-frequency freight hubs and automated sorting facilities, the rolling engagement characteristics experience negligible component fatigue. The system delivers a multi-decade operational lifespan of 20 to 30 years with basic maintenance intervals and interfaces easily with modern terminal dispatch software.
Q4: How is the turntable delivered and installed for global projects?
A: Our structural truck turntables utilize a completely modular design, allowing components to be packed securely into standard shipping containers for worldwide transit. We supply exhaustive foundation structural civil drawings, assembly instruction manuals, and remote video guidance or on-site engineering supervision.
Q5: Can the rotation speed of the turntable be adjusted?
A: Yes, each platform is wired into an integrated control cabinet featuring centralized PLCs and localized Variable Frequency Drives (VFD). This layout provides smooth, multi-tiered velocity control, preventing rapid structural mass shifts while allowing operators to set customized rotation speeds and soft start-stop curves.
Q6: Do you provide custom surface decking for specific industries?
A: Absolutely. Depending on whether your logistics platform is open-air or embedded inside an enclosed delivery slot, we build multiple deck alternatives, including heavy high-friction checkered anti-slip steel plating, concrete-infill recessed frames, or open drainage structural gratings.
