Motion Control Turntables
Automotive Evaluation & Photography Platforms
运动控制转盘
汽车评估与摄影测试平台

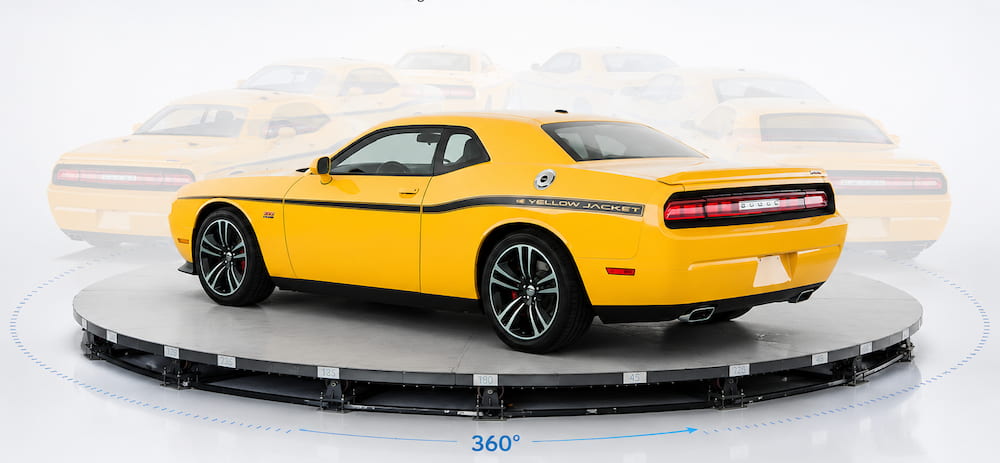

Engineered for applications where reliability and structural precision are paramount. Shenyang Weizhong's Motion Control Turntables integrate two specialized product lines: the Automotive Evaluation Turntable and the Automotive Photography Turntable. Featuring a stopping accuracy of ≤±0.2° and a highly advantageous step-mode rotation system, these platforms deliver flawless performance for R&D reviews and automated 360° studio workflows.
Dual Master Applications

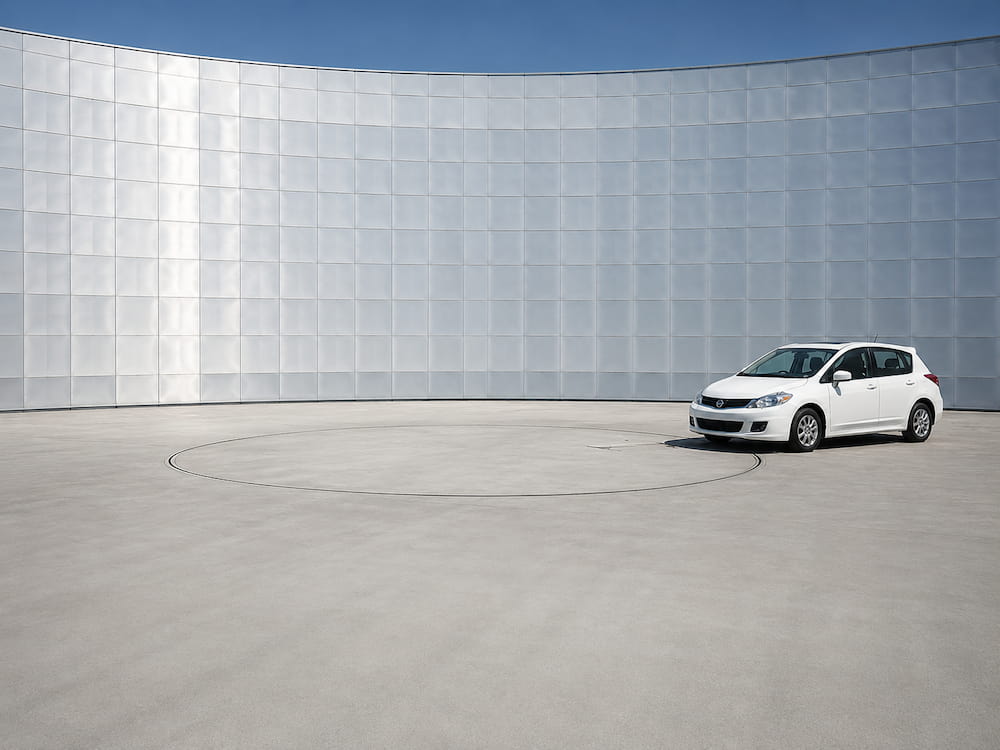

Automotive R&D Evaluation Turntable
Engineered specifically for automotive design centers and engineering labs. Capable of continuous and offset operations with arbitrary angle setting and zeroing functions. Integrated with PC communication (Modbus TCP / Modbus RTU), the proprietary Pin-Gear drive ensures vibration-free transit and locks into place with ≤±0.2° accuracy for seamless 3D scanning or styling reviews.

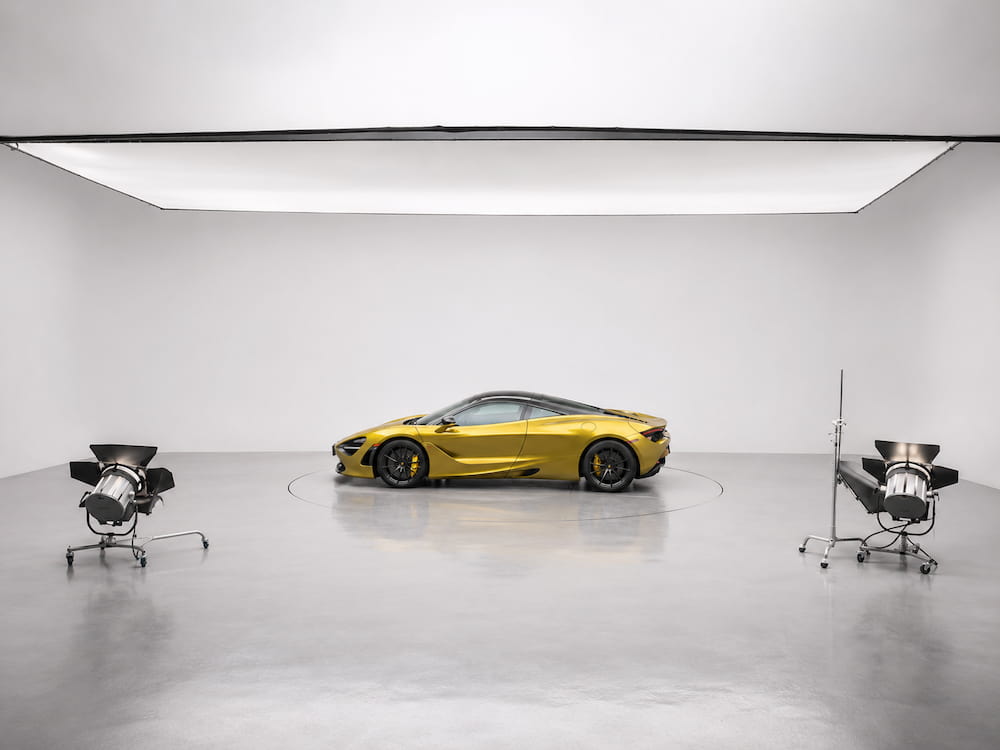

Automotive Photography Turntable
Optimize your commercial photography workflow with our absolute-zero positioning platform. The standout advantage lies in its automated step-mode—configurable to 5°, 10°, 20°, 30°, 45°, 90° angles. Paired with auto-restart timing and camera integration, it ensures perfectly synchronized, hands-free content creation.
Intelligent Hardware Architecture
Siemens PLC & Step-Mode Control

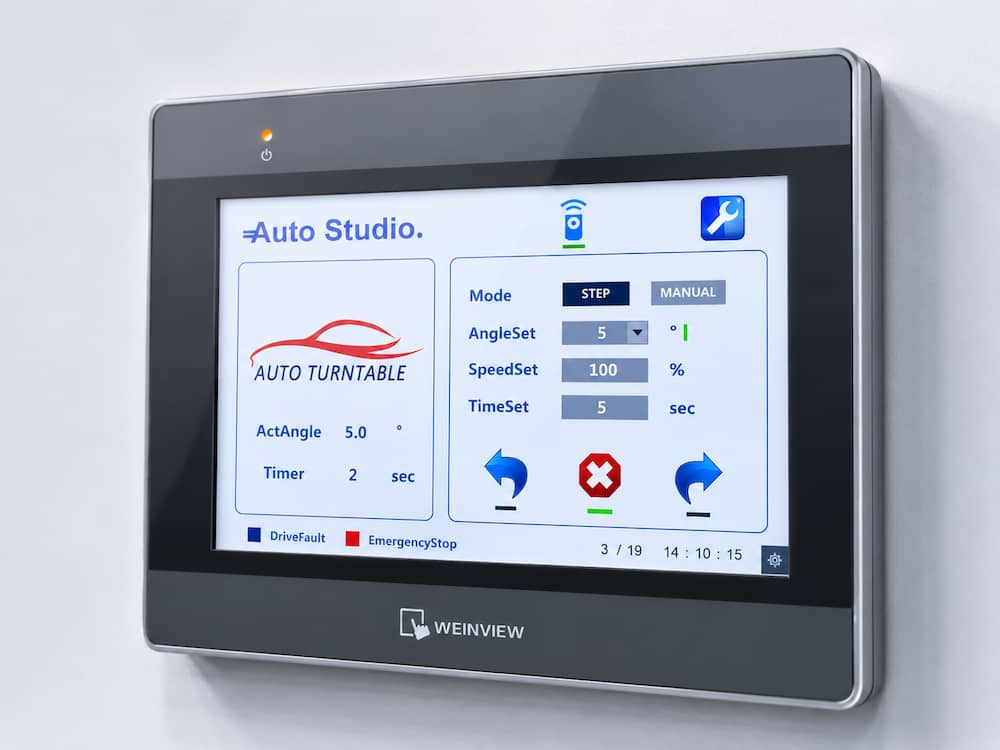

Command operations via the 10-inch touchscreen or iPad interface. Evaluation systems feature Siemens Smart200 PLC and G120 VFD hardware. For photography applications, the core advantage is the native support for step-mode intervals (5/10/20/30/45/90°).
Precision Structural Integrity

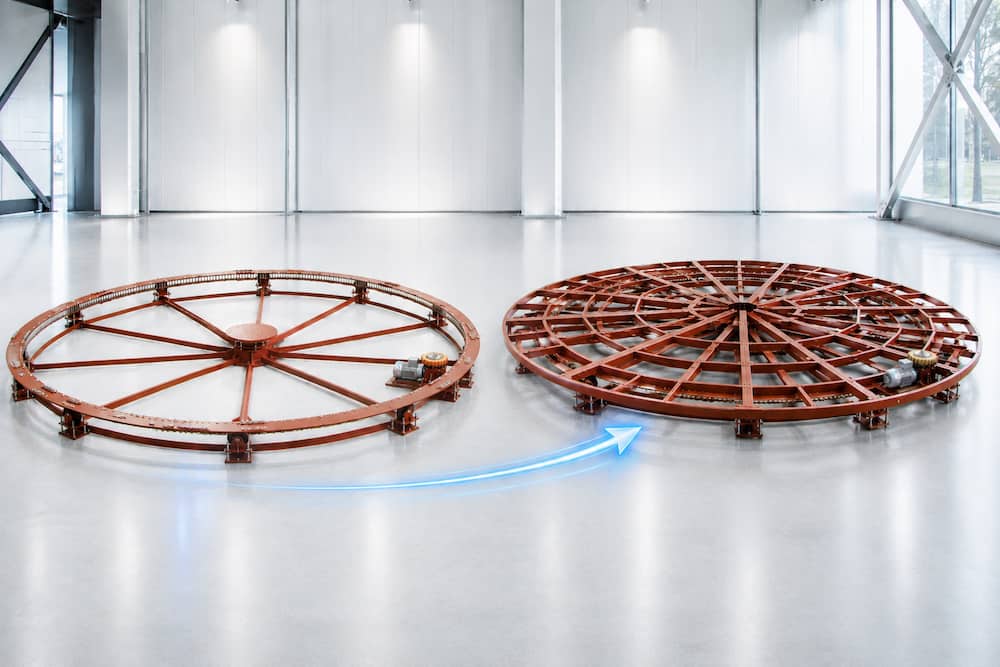

Engineered with a high-strength, modular steel framework. Each section is factory-calibrated to ensure perfect load distribution (4000-4500kg capacity) and structural alignment, providing a rock-solid foundation for smooth operation.
NORD POWERTRAIN & PIN-GEAR

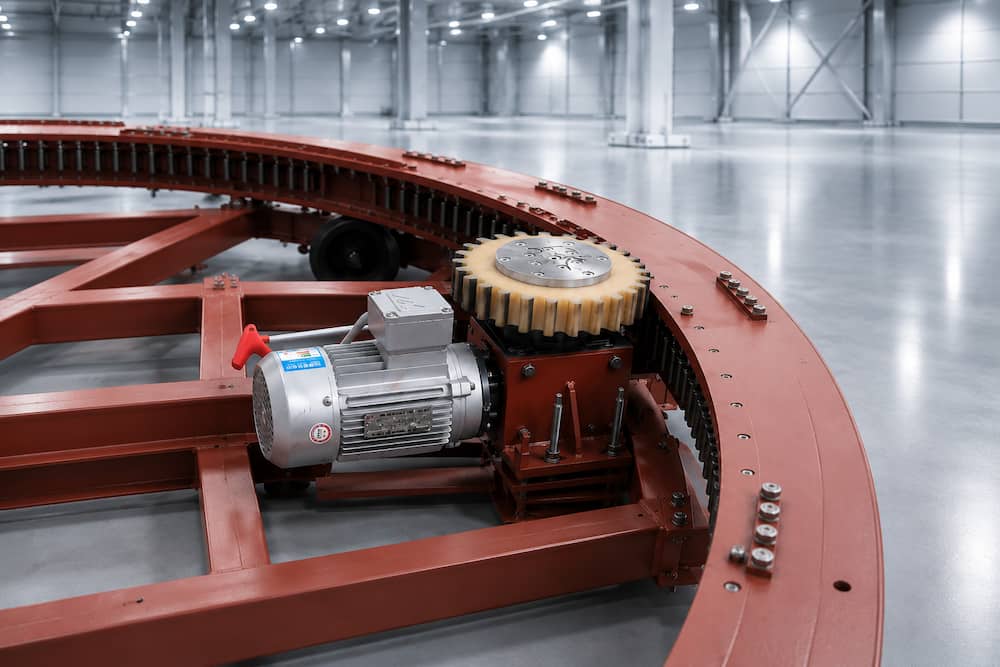

Driven by a premium German NORD gear motor. Our Pin-Gear transmission replaces friction drives, guaranteeing zero slippage and maintaining low operating noise (≤45dB).
Technical Specifications Comparison
| Specification | Automotive Evaluation Turntable |
Studio Photography Turntable |
|---|---|---|
| Core Functionality | Offset run, continuous run, arbitrary angle setting, angle display, and status display. | Automated step-mode, continuous run, auto-restart timing. |
| Positioning & Zeroing | Arbitrary zeroing function (set any position as zero point). | Hardware absolute zero-position sensor. |
| Operating Angles | Target angle input | Step Angles: 5°, 10°, 20°, 30°, 45°, 90° |
| Hardware & Interface | Siemens Smart200 PLC, Siemens G120 VFD. Control via Local Panel, iPad, PC (Modbus TCP/RTU). |
Standard Motion PLC. Control via Local Panel, iPad. |
| Platform Dimensions | Diameter: 4500mm / 5000mm / 5500mm / 6000mm | Height: 310mm / 330mm | |
| Performance | Dynamic Load: 4,000 kg | Speed: 0.2-1.0 RPM (1~5min/r) | Noise: ≤45dB | |
Discuss Your Motion Control Turntable Solution With Our Engineers
Need help selecting the right turntable solution? Our engineering team provides guidance on size, load capacity and installation requirements.
Engineering Support
- ✓ CAD / PDF drawing review
- ✓ Custom diameter & load calculation
- ✓ Installation solution guidance
- ✓ Global project support
WhatsApp Consultation
- ✓ Fast technical communication
- ✓ Project evaluation support
- ✓ Quick quotation response
- ✓ Global customer service
Technical FAQ
Q: How precise is the stopping angle for R&D evaluation?
A: By combining a robust Siemens PLC system with the Pin-Gear mechanism, operators can achieve a stopping accuracy of ≤±0.2°, making it ideal for highly sensitive 3D scanning and optical alignment tasks.
Q: How does the turntable integrate with photography equipment?
A: The Photography Turntable cabinet features a built-in automation relay interface. When the turntable reaches a pre-programmed step angle (e.g., 10° or 45°), it pauses and automatically triggers your connected camera(s) to take a photo before rotating to the next position.
Q: Does the platform return to absolute zero for consistency?
A: For Photography Turntables, a physical absolute zero-position sensor is integrated into the chassis for perfect repetition. For Evaluation Turntables, operators utilize a flexible arbitrary zeroing function via the touchscreen to set custom baselines on the fly.
Q: Are vibrations a concern during continuous rotation?
A: No. Unlike traditional friction drives, Weizhong's proprietary Pin-Gear transmission coupled with a German NORD gear motor and VFD control guarantees utterly smooth, judder-free movement.
Q: What are the foundation requirements for flush-mount installation?
A: We provide comprehensive civil engineering blueprints upon order. Typically, the installation requires a shallow circular concrete pit (310mm or 330mm depth depending on the specific model) to ensure the top plate sits flush with your studio floor.
Q: Can the platform support heavy Electric Vehicles (EVs) smoothly?
A: Absolutely. With a massive 4,000 to 4,500 kg dynamic load capacity, the heavy-duty structural frame effortlessly handles heavy EV battery packs without any motor strain.
Q: Can the PLC system integrate with our proprietary testing software?
A: Yes. The Evaluation Turntable is equipped with Modbus TCP or Modbus RTU PC communication capabilities, allowing for direct programmatic handshake protocols with central R&D testing software.
Q: What is the maintenance schedule for the Pin-Gear drive?
A: Unlike friction-drive systems, our heavy-duty Pin-Gear mechanism is highly durable. With basic annual lubrication, it boasts an extremely long continuous service life, keeping maintenance costs low.
