Industrial Heavy-Duty Turntables
High-capacity automated rotating platforms engineered for extreme industrial payloads, continuous rotary utility transmission, and smooth heavy manufacturing logistics. Built to handle extreme dynamic loads up to 1,000T+ with zero-slip torque transmission.
Key Capabilities: Up to 1,000T+ Payload Limit | Patented Pin-Gear Zero-Slip Drive | Custom Diameters (up to 60m) | Multi-Medium Utility Transmission
Engineered specifically for automated manufacturing lines, heavy machinery handling, coil processing, and severe industrial environments where reliability is non-negotiable.
Traditional linear production tracks and longitudinal assembly lines waste vital square-footage. Our multi-station index tables map logistics into compact circular assembly grids.
Manipulating high structural weights within confined plant facilities is hazardous. Rotating platforms allow instant directional changes to eliminate facility bottlenecks.
Handling high dynamic loads often introduces mechanical play. Weizhong engineering integrates absolute encoders and PLCs to secure strict stopping accuracy.
Built for decades of high-frequency operation under extreme industrial conditions with minimal maintenance requirements.
Developed for continuous heavy manufacturing, our pin-gear mechanism enforces positive mechanical rolling mesh to provide complete zero-slip operation.

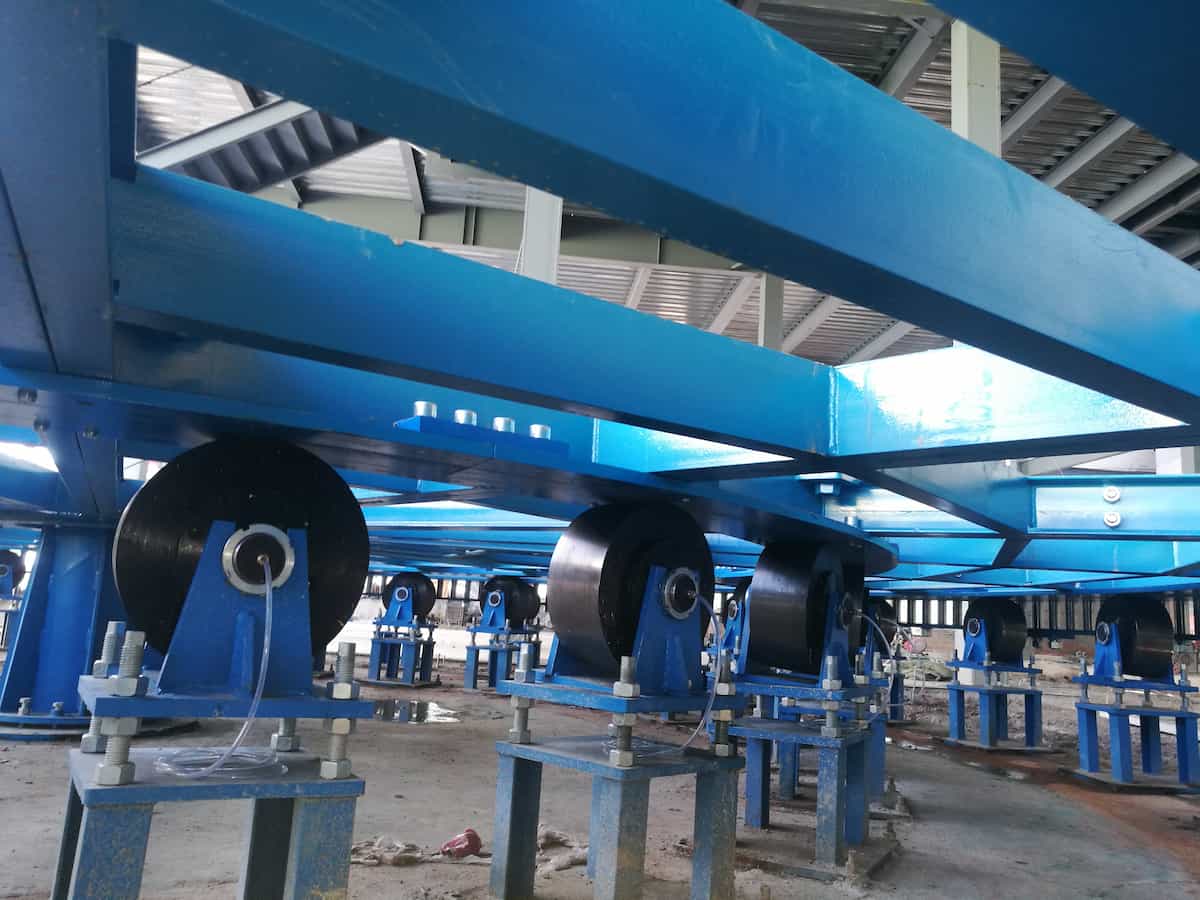

Support wheels feature an inclined design to minimize frictional resistance. Each wheel is equipped with built-in grease ports for easy routine maintenance.

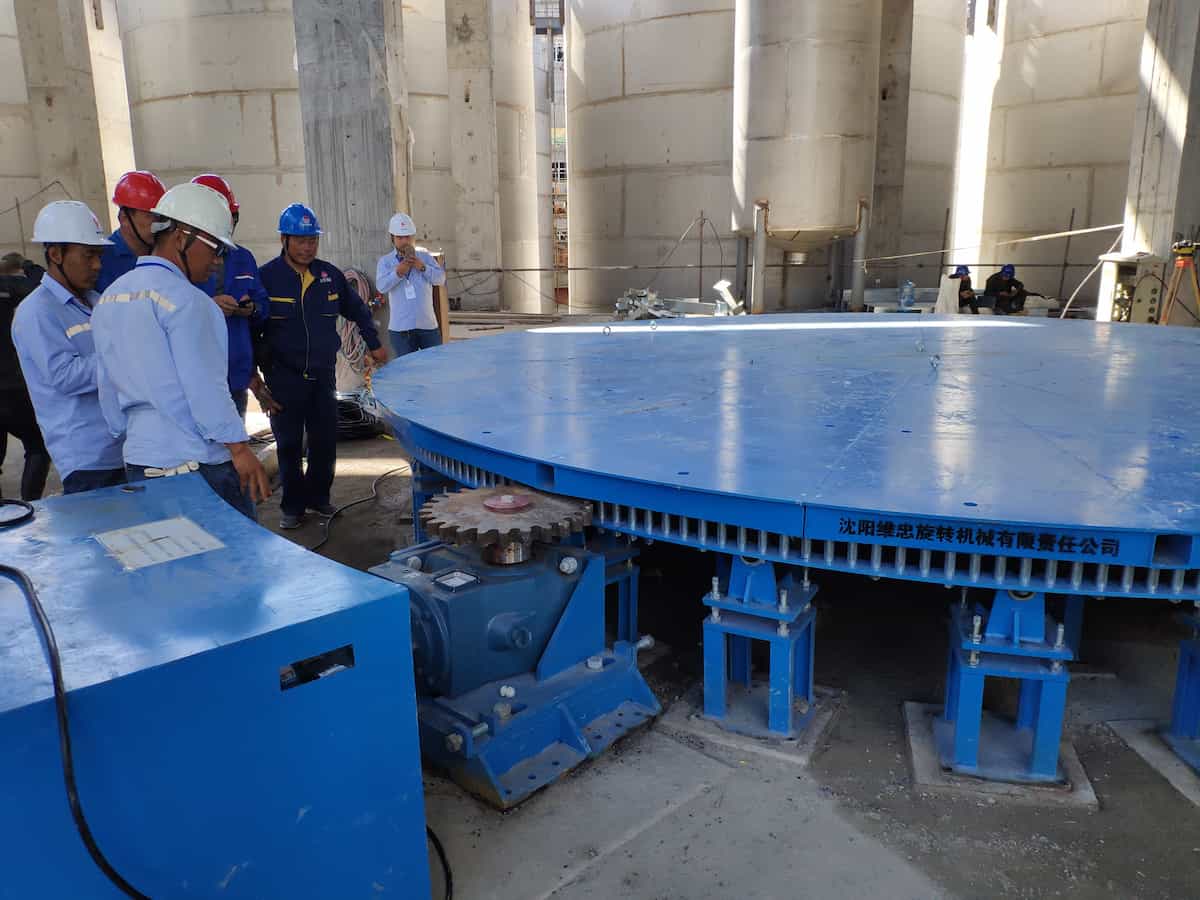

The main gear motor is positioned on the exterior of the platform frame, enabling fast inspection, routine maintenance, and easy replacement.
Every critical drive and electrical component is sourced from globally recognized Tier-1 manufacturers to ensure maximum durability in severe conditions.

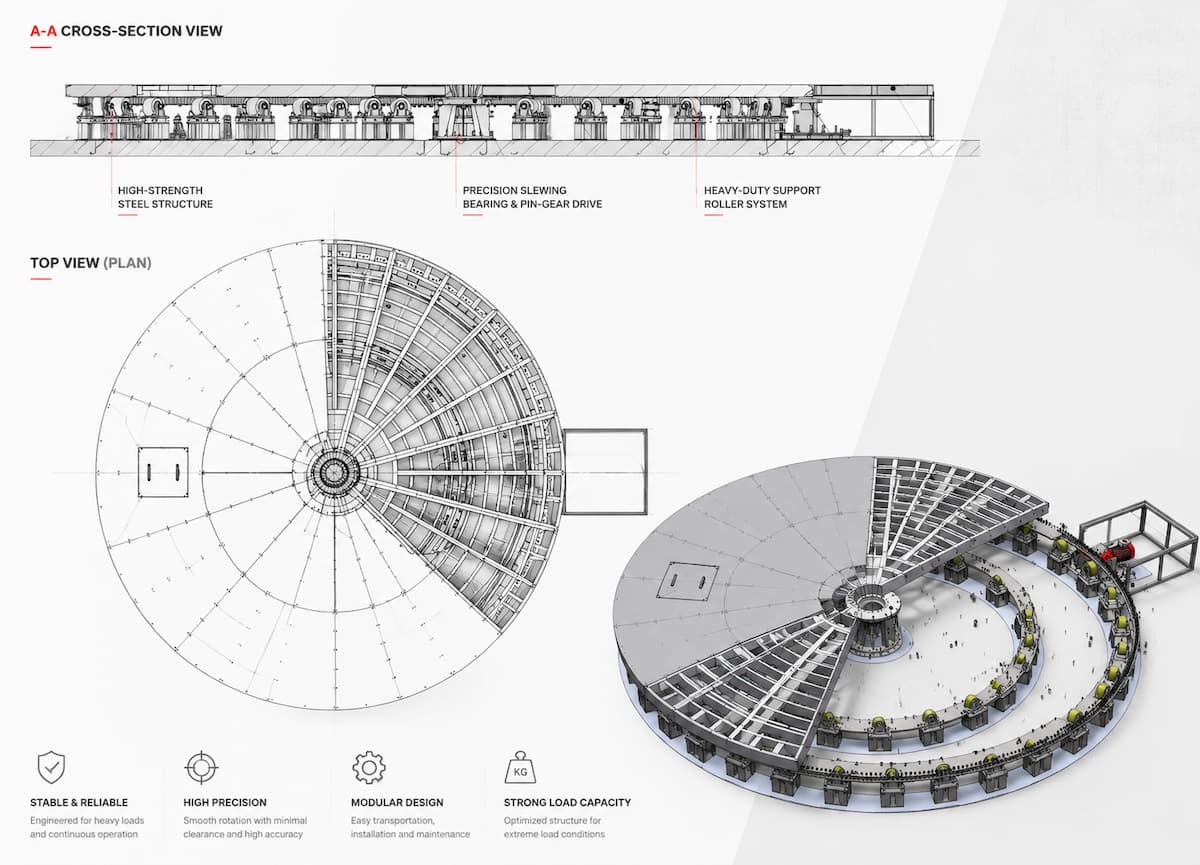

As our heavy-duty turntables are highly customizable product series, below are the parameters for a specific client case (IT8500S-326T) to serve as a technical reference. All specifications will be tailored to your exact facility and payload requirements.
| Model Case | IT8500S-326T |
|---|---|
| Platform Diameter | 8,500 mm (8.5 m) |
| Rated Load Capacity | 326 Metric Tons (326,000 kg) |
| Overall Height | 838 mm / 887 mm |
| Rotation Speed | 0.05 RPM (20 min/rev, VFD Adjustable) |
| Motor Power | 1.1 kW |
| Deck Surface Material | 10 mm Heavy Steel Smooth Plate |
| Control Box Power | Single-Phase AC 200–240V, 50/60Hz, 10A |
| Self Weight | 21 Metric Tons |
Q: What is the maximum weight capacity for Weizhong industrial turntables?
A: Weizhong specializes in extreme heavy industrial engineering, allowing us to manufacture custom robust rotating platforms ranging from 3 to 60 meters in diameter that support dynamic loads up to 1,000 metric tons.
Q: How accurate is the stopping precision for multi-station assembly lines?
A: By closing the control loop with industrial PLCs and absolute encoders, our automation platforms lock into pre-programmed angular positions with high-repeatability positioning and reliable stopping accuracy.
Q: Why use the Pin-Gear drive instead of friction wheels for heavy industry?
A: Our patented Pin-Gear drive utilizes a positive mechanical rolling lock that guarantees zero-slip torque transmission, eliminating continuous tread slip under heavy industrial loads.
Q: What is the typical manufacturing lead time for custom heavy-duty turntables?
A: Since our heavy-duty turntables are engineered to custom specifications, manufacturing lead times typically range from 6 to 10 weeks depending on platform diameter, payload capacity, and control system complexity. Full milestone schedules and progress updates are provided for every project.
Q: Do you provide overseas installation support for such massive equipment?
A: Yes. All platforms feature a modular structure designed for efficient containerized ocean shipping. We supply comprehensive English assembly drawings, CAD manuals, and video tutorials. For major industrial projects, our engineering team can provide on-site supervision or 24/7 remote commissioning support.
Q: Can the electrical control system be customized to our country's local voltage and standards?
A: Absolutely. Our electrical control cabinets and VFD drives (SEW-Eurodrive / Invertek) are configured to your regional power requirements (e.g., 380V, 480V, or 600V at 50Hz/60Hz) and can be engineered to comply with CE, UL, or CSA standards.
Q: How difficult is it to maintain the Pin-Gear drive system?
A: Routine maintenance is extremely simple and cost-effective. Thanks to the external drive motor layout and integrated grease ports on the inclined support wheels, maintenance teams can perform routine lubrication and visual inspections without dismantling any part of the platform.
